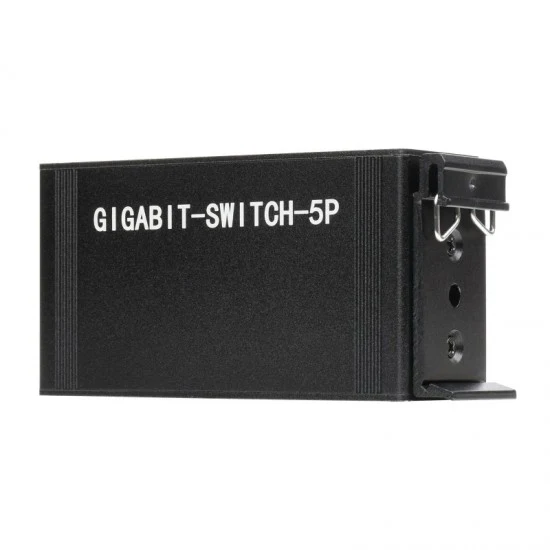

Industrial Grade 5P Gigabit Ethernet Switch, IEEE 802.3x-Compliant Full-Duplex 10/100/1000M Connection, DIN Rail Mount

Features

• Onboard switch chip, 5x ports 10/100/1000M non-blocking switch architecture

• Full-duplex 10/100/1000M support for each port (the half-duplex 100M connection is only supported on 10/100M mode)
• Full/Half-duplex operations with IEEE 802.3x flow control and backpressure support
• Allow forwarding 9216 bytes huge data packet on linear speed
• Over-voltage protection, effectively preventing damages caused by other high voltage power supply
• Industrial grade alloy case, solid and durable, with DIN rail mount support for easy installing

Wide Range Supply, Multiple Protections

5~36V Wide Voltage Range Power Supply, Dual Power Inputs (DC Jack And Screw Terminal)



Onboard Over-Voltage Protection And Reverse-Proof Protection

Plug & Play

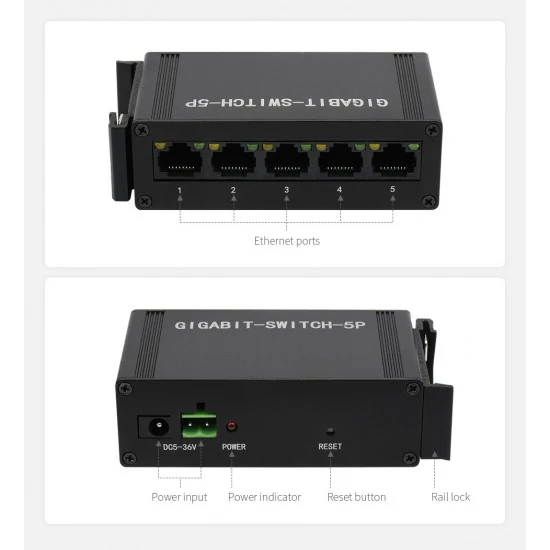

5x 10/100/1000M Ethernet Ports With Auto MDI/MDI-X support,



No Extra Configuration Required, Plug And Play

Resources

   Technical Documentation

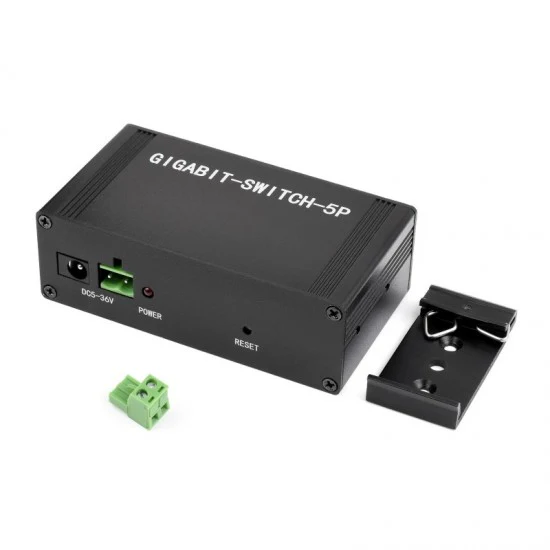

Package Includes

1. Gigabit-Switch-5P x1

2. Power supply screw terminal x1
3. 12V 1A power adapter x1
