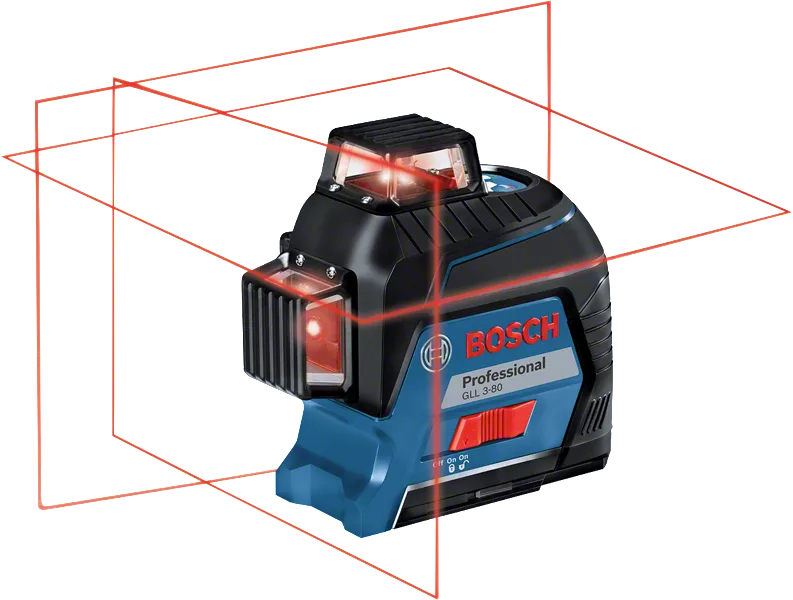

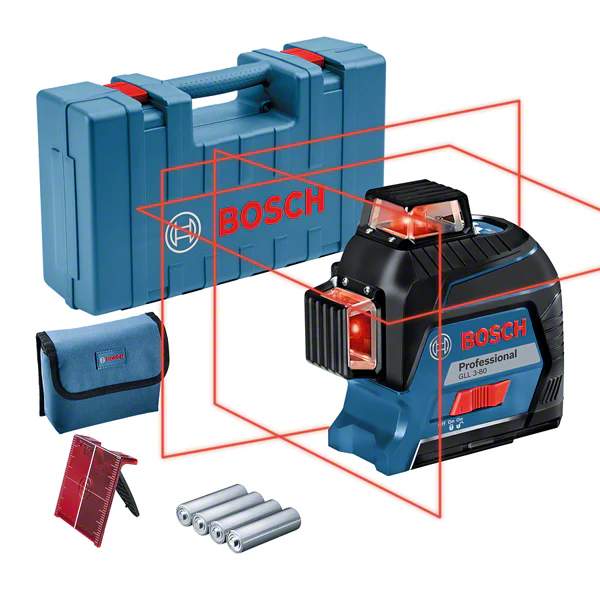

GLL 3-80
GLL 3-80
Technical data
Additional data |
|
|---|---|
| Tripod thread | 1/4", 5/8" |
| Laser diode | Line: 630 - 650 nm, < 10mW |
| Operating temperature | -10 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range | up to 30 m |
| Working range with receiver | up to 120 m |
| Accuracy | ± 0.3 mm/mᵃ |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Dust and splash protection | IP 54 |
| Power supply | 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 4 h in 3-line mode |
| Weight, approx. | 0.82 kg |
| Colour of laser line | red |
| Projection | 3 x 360° line |
| Compatible laser receivers | LR 6 + 7 |
| Working range, value | 30 m |
| Working range with receiver, value | 120 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
ᵃ Applies for the four horizontal intersection points
GLL 3-80
Technical data
Additional data |
|
|---|---|
| Tripod thread | 1/4", 5/8" |
| Laser diode | Line: 630 - 650 nm, < 10mW |
| Operating temperature | -10 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range | up to 30 m |
| Working range with receiver | up to 120 m |
| Accuracy | ± 0.3 mm/mᵃ |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Dust and splash protection | IP 54 |
| Power supply | 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 4 h in 3-line mode |
| Weight, approx. | 0.82 kg |
| Colour of laser line | red |
| Projection | 3 x 360° line |
| Compatible laser receivers | LR 6 + 7 |
| Working range, value | 30 m |
| Working range with receiver, value | 120 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
ᵃ Applies for the four horizontal intersection points
$52,698.30
GLL 3-80—
$52,698.30
Description
GLL 3-80
Technical data
Additional data |
|
|---|---|
| Tripod thread | 1/4", 5/8" |
| Laser diode | Line: 630 - 650 nm, < 10mW |
| Operating temperature | -10 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range | up to 30 m |
| Working range with receiver | up to 120 m |
| Accuracy | ± 0.3 mm/mᵃ |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Dust and splash protection | IP 54 |
| Power supply | 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 4 h in 3-line mode |
| Weight, approx. | 0.82 kg |
| Colour of laser line | red |
| Projection | 3 x 360° line |
| Compatible laser receivers | LR 6 + 7 |
| Working range, value | 30 m |
| Working range with receiver, value | 120 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
ᵃ Applies for the four horizontal intersection points
