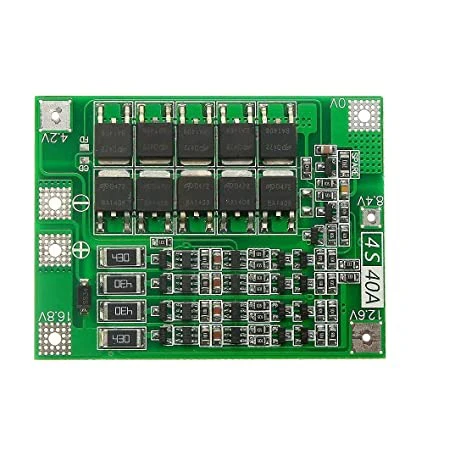

4 Series 40A 18650 Lithium Battery Protection Board
4 Series 40A 18650 Lithium Batter
4 Series 30A 18650 Lithium Battery Protection Board 14.8V 16V with Cable, a Balance Board for Drill Motor Lipo Cell Module comes with recovery function-AUTO Recovery and Integrated 10 low load resistance MOS tube.
It provides continuous discharge of 30A, Balanced current, for electric drill/sprayer/LED lights/low power inverter.Ā Ā (if the cooling environment is not good, please reduce the load current use)
The Scope of Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, a polymer lithium battery) where Charging voltage canĀ be range between 16.8V to 18.1V The board operates smoothly with Continuous charge current of (upper limit): 20A. The balanced version is suitable for starting current below 80A, power 135W below the drill (with balance)
The Board comes in a size of approx. 46 x 60 x 3.4 mm which can be easily installed in a compact size or on battery bundle itself.
y Protection Board
4 Series 40A 18650 Lithium Batter
4 Series 30A 18650 Lithium Battery Protection Board 14.8V 16V with Cable, a Balance Board for Drill Motor Lipo Cell Module comes with recovery function-AUTO Recovery and Integrated 10 low load resistance MOS tube.
It provides continuous discharge of 30A, Balanced current, for electric drill/sprayer/LED lights/low power inverter.Ā Ā (if the cooling environment is not good, please reduce the load current use)
The Scope of Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, a polymer lithium battery) where Charging voltage canĀ be range between 16.8V to 18.1V The board operates smoothly with Continuous charge current of (upper limit): 20A. The balanced version is suitable for starting current below 80A, power 135W below the drill (with balance)
The Board comes in a size of approx. 46 x 60 x 3.4 mm which can be easily installed in a compact size or on battery bundle itself.
y Protection Board
Description
4 Series 40A 18650 Lithium Batter
4 Series 30A 18650 Lithium Battery Protection Board 14.8V 16V with Cable, a Balance Board for Drill Motor Lipo Cell Module comes with recovery function-AUTO Recovery and Integrated 10 low load resistance MOS tube.
It provides continuous discharge of 30A, Balanced current, for electric drill/sprayer/LED lights/low power inverter.Ā Ā (if the cooling environment is not good, please reduce the load current use)
The Scope of Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, a polymer lithium battery) where Charging voltage canĀ be range between 16.8V to 18.1V The board operates smoothly with Continuous charge current of (upper limit): 20A. The balanced version is suitable for starting current below 80A, power 135W below the drill (with balance)
The Board comes in a size of approx. 46 x 60 x 3.4 mm which can be easily installed in a compact size or on battery bundle itself.
y Protection Board
