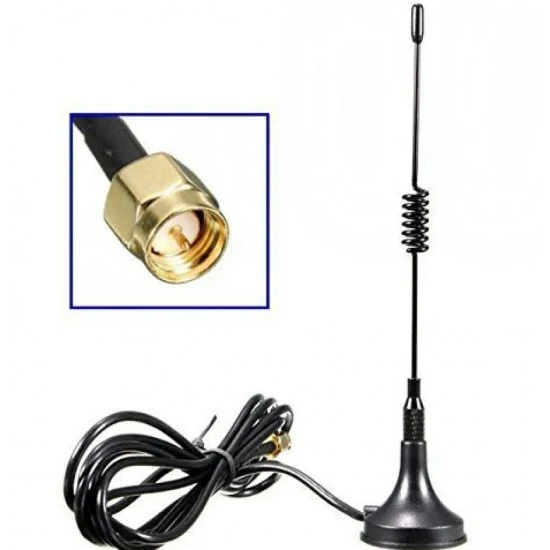

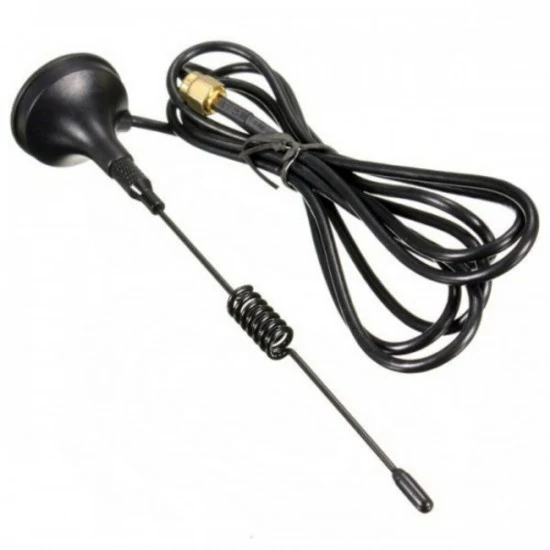

3dBi 900-1800MHz Magnetic Base GSM Antenna 20CM Length With 3 Meter SMA Male Cable

This is a GSM magnetic base antenna with 3 dBi gain with SMA male connector. Its frequency range lies between 900-1800Mhz and its bandwidth is 70/170. This is a vertical polarization types magnetic base antenna whose maximum input power is 50W and input impedance is 50ohm. This antenna is commonly used in GSM repeater, GSM Module, GSM modems & GSM sensor .

Features

• Frequency Range :900-1800Mhz
• VSWR : ≤2.0
• Gain : 3 dBi
• Polarization Type : Vertical
• Rated Power : 100W
• Input Impedance : 50Ohm
• Radome Materials : Plastic
• Connector : SMA Male
• Cable length : 3 Meter
• Weight : 50gm

Specifications

• Type : Magnetic Base GSM Antenna
• Antenna Type :Magnetic Antenna
• Usage/Application : External,Lot,Router,Communication Devices

• Color : Black
• Min Frequency : 900 Mhz

• Max Frequency : 1800 Mhz
• Gain : 3 DBI

• Radiator Cuprum
• Connector : SMA Male or customised
• Min Working Temp. : -40 Degree C
• Max Working Temp. : +60 Degree C
