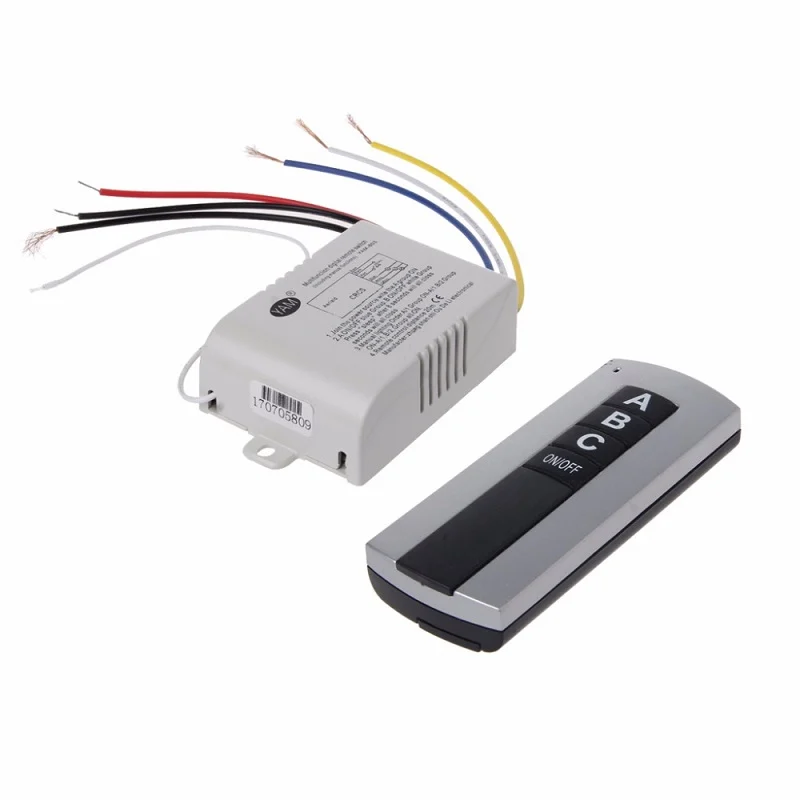

3 Channel RF Wireless ON/OFF Smart Switch with RF Remote Control

Control your 3 AC application up to 1000W operating power for each device with this RF smart switch. This is 3 channel smart relay switch to ON and OFF 220V @50Hz AC applications. It is very easy to install at your existing switchboard to make it wireless with remote control in your hand. RF Remote operates on 433MHz RF frequency with up to 30meter of Range. This Relay system can be used for the applications like incandescent Light, FAN, TV sets, or any other applications under 1000W operating power.

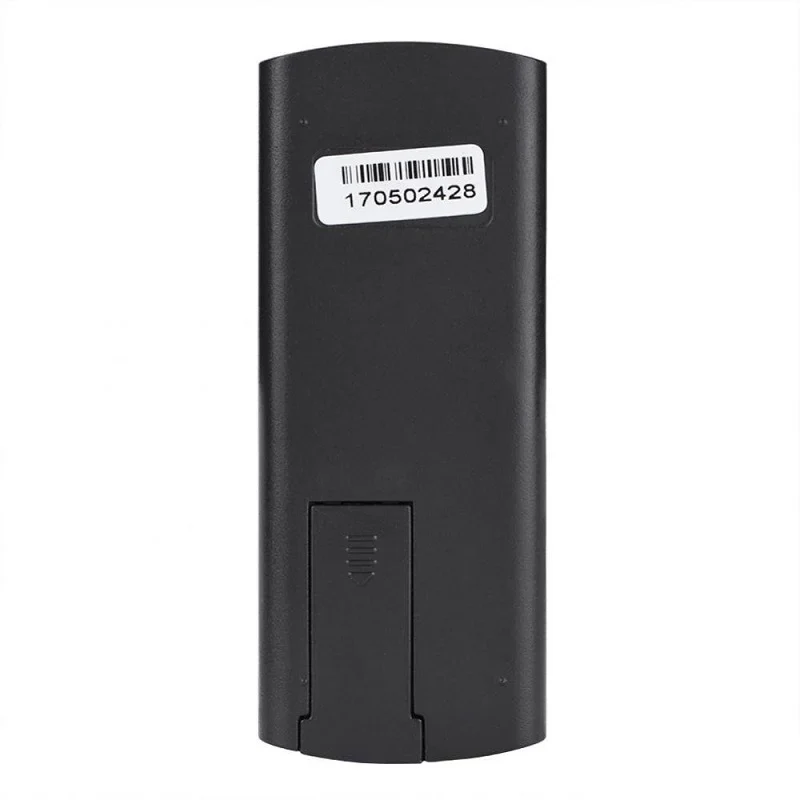

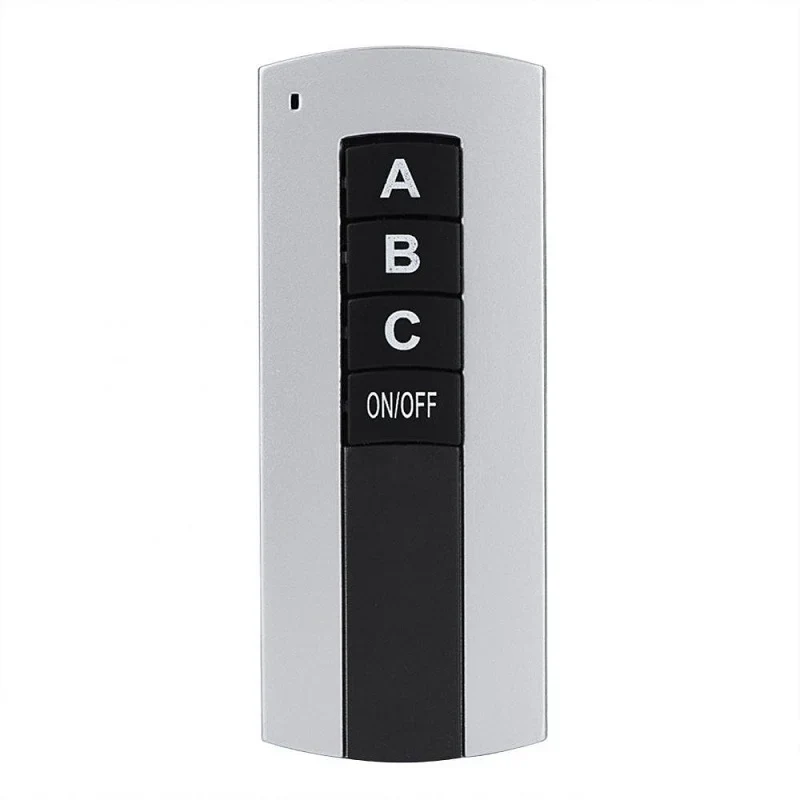

The Remote control you get with this smart switch comes with 4 buttons, out of it 3 buttons are given control 3 devices individually and 1 button is to ON/OFF  all devices in one stroke.

Note: Battery is not included with the Remote.

Wiring Guide:

1. Blue Wire: Application-1 Phase
2. Yellow Wire: Application-2 Phase
3. White  Wire: Application-3 Phase
4. Black Wire1: Application 1+2+3 Neutral (common Neutral)
5. Black Wire2: AC Input Neutral
6. Red Wire:  AC Input Phase

---

Features:

1. Quick and easy installation,
2. The range is not obstructed by walls,
3. Capable of connecting any loads under 1000 Watts operating Power.
4. Remote controller and switch can be used simultaneously for ease and flexibility
5. Every set of remote-controlled switches has its special code. More sets can be used in one room without interference
6. Can be used in house stairs, aisle, corridor, bathroom, warehouse, garage, factory, workshop
