1501MG Metal Steering Gear
1501MG Metal Steering Gear
1501MG Metal Steering Gear

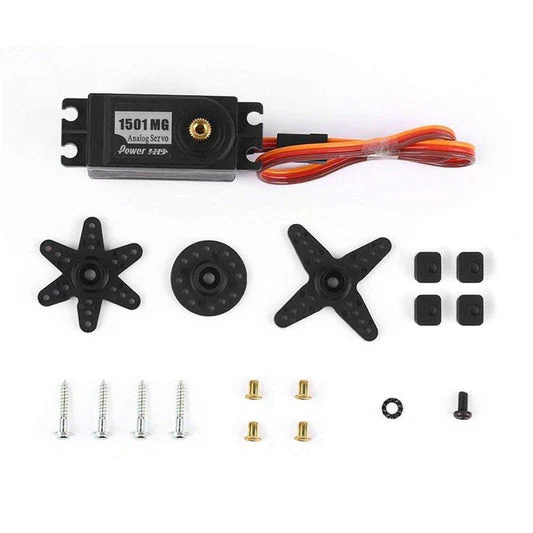

Power HD's 1501MG metal-geared analogue servo delivers extra-high torque normally associated with much more expensive or larger servos. Servo horns and the necessary hardware are included.

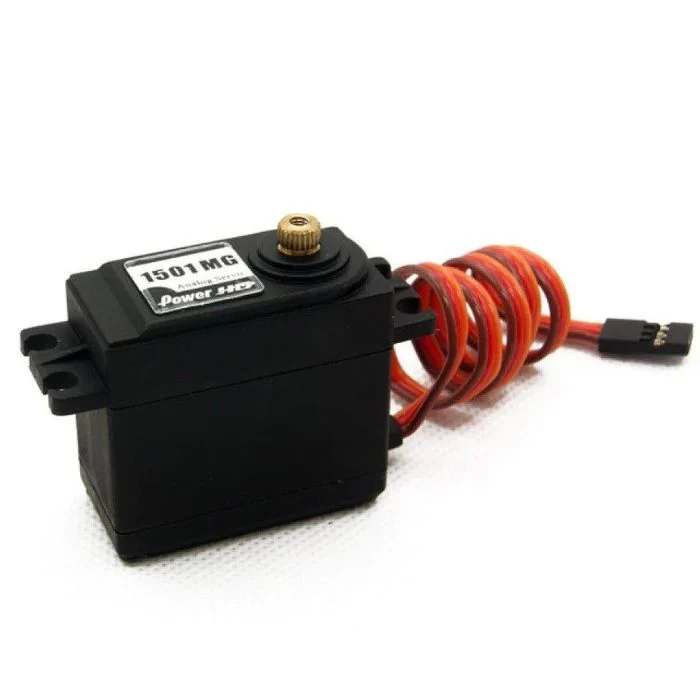

The 1501MG is a powerful standard-size servo with metal gears and two ball bearings that can deliver a surprising amount of torque for such a small servo. The 1501MG servo motor operates on standard RC servo pulses, with a running angle of approximately 165° over a servo pulse range of 800 s to 2200 s, and a 10′′ (25 cm) cable terminated with a standard JR-style connector that is Futaba-compatible.
read our blog explaining the comparison of servo motor vs dc motor.
Package Includes:
- 1 x 1501MG Metal Steering Gear
Specifications:
| Operation Voltage | 4.8 - 6Volts |
| Rotation angle | 180 degree |
| Stall Torque (4.8V) | 15.5kg/cm |
| Stall Torque (6.0V) | 17kg/cm |
| Weight | 63gm |
1501MG Metal Steering Gear
1501MG Metal Steering Gear
Power HD's 1501MG metal-geared analogue servo delivers extra-high torque normally associated with much more expensive or larger servos. Servo horns and the necessary hardware are included.
The 1501MG is a powerful standard-size servo with metal gears and two ball bearings that can deliver a surprising amount of torque for such a small servo. The 1501MG servo motor operates on standard RC servo pulses, with a running angle of approximately 165° over a servo pulse range of 800 s to 2200 s, and a 10′′ (25 cm) cable terminated with a standard JR-style connector that is Futaba-compatible.
read our blog explaining the comparison of servo motor vs dc motor.
Package Includes:
- 1 x 1501MG Metal Steering Gear
Specifications:
| Operation Voltage | 4.8 - 6Volts |
| Rotation angle | 180 degree |
| Stall Torque (4.8V) | 15.5kg/cm |
| Stall Torque (6.0V) | 17kg/cm |
| Weight | 63gm |
Description
1501MG Metal Steering Gear
1501MG Metal Steering Gear
Power HD's 1501MG metal-geared analogue servo delivers extra-high torque normally associated with much more expensive or larger servos. Servo horns and the necessary hardware are included.
The 1501MG is a powerful standard-size servo with metal gears and two ball bearings that can deliver a surprising amount of torque for such a small servo. The 1501MG servo motor operates on standard RC servo pulses, with a running angle of approximately 165° over a servo pulse range of 800 s to 2200 s, and a 10′′ (25 cm) cable terminated with a standard JR-style connector that is Futaba-compatible.
read our blog explaining the comparison of servo motor vs dc motor.
Package Includes:
- 1 x 1501MG Metal Steering Gear
Specifications:
| Operation Voltage | 4.8 - 6Volts |
| Rotation angle | 180 degree |
| Stall Torque (4.8V) | 15.5kg/cm |
| Stall Torque (6.0V) | 17kg/cm |
| Weight | 63gm |
