12-0-12 Transformer-500mA

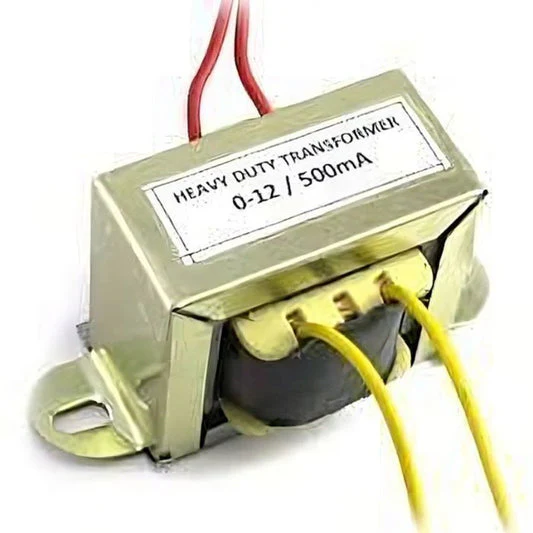

12-0-12 500mA Center Tapped Step Down Transformer is a general purpose chassis mounting mains transformer. Transformer has 230V primary winding and center tapped secondary winding. The transformer has flying colored insulated connecting leads ( Approx 100 mm long ). The Transformer act as step down transformer reducing AC - 230V to AC - 12V.

The Transformer gives outputs of 12V, 12V and 0V. The Transformer's construction is written below with details of Solid Core and Winding.

The transformer is a static electrical device that transfers energy by inductive coupling between its winding circuits. A varying current in the primary winding creates a varying magnetic flux in the transformer's core and thus a varying magnetic flux through the secondary winding. This varying magnetic flux induces a varying electromotive force (E.M.F) or voltage in the secondary winding. The transformer has cores made of high permeability silicon steel. The steel has a permeability many times that of free space and the core thus serves to greatly reduce the magnetizing current and confine the flux to a path which closely couples the winding.

Specifications of 12-0-12 500mA Center Tapped Transformer:-



• Input Voltage:          230V AC
• Output Voltage:         12V, 12V or 0V
• Output Current:         500mA
• Mounting:                 Vertical mount type





Features of 12-0-12 500mA Center Tapped Transformer:-



• Soft Iron Core.
• 500mA Current Drain.



Applications of 12-0-12 500mA Center Tapped Transformer:-



• DIY projects Requiring In-Application High current drain.
• On chassis AC/AC converter.
• Designing a battery Charger.
