1080P HDR MIPI Camera - MCAM400

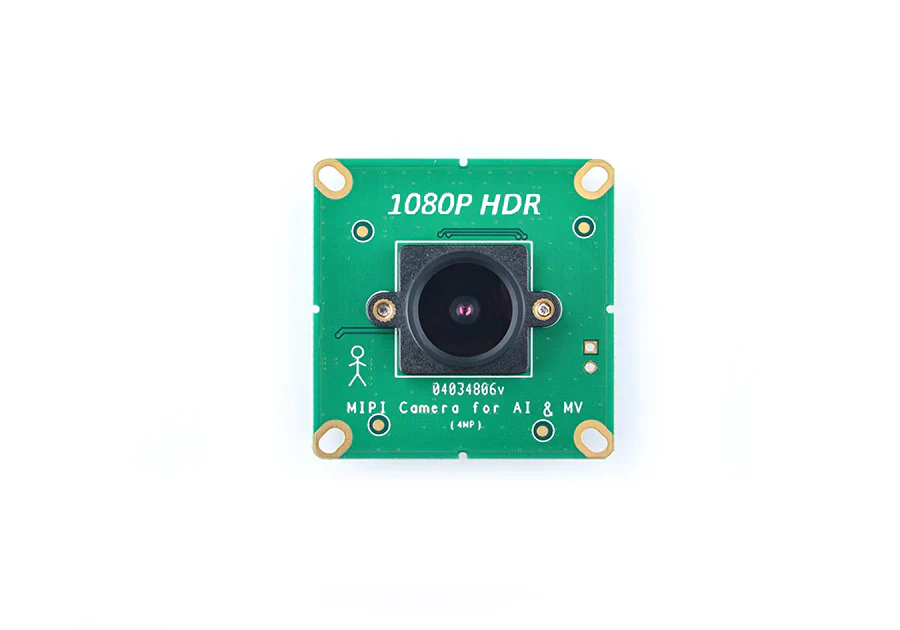

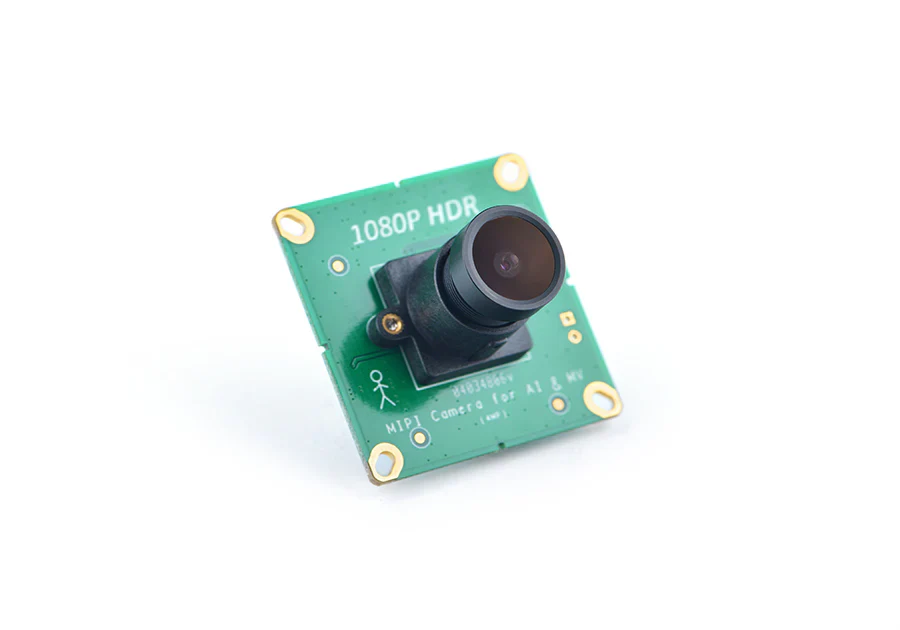

The MCAM400 module uses an Omni Vision's 4MP CMOS OV4689 image sensor and an M12 Lens. It has a four-lane MIPI output interface and supports up to 2688 x 1520 photographing and 1920x1080@l20fps video recording. It has a built-in IR Cut-Off filter motor driver. The module's size is 38 x 38 mm.

Sensor size	1/3"
Active pixels	2688H x 1520V
Pixel size	2.0 um x 2.0 um
Output format	10-bit RAW RGB
Max S/N ratio	38.3dB
Sensitivity	1900mv/lux-sec
Temperature range	operating: -30℃ to +85℃ junction temperature stable image: 0℃ to +60℃ junction temperature

Fixed Lens w/ IR Filter(Standard）
Focal Length (EFL)	3.3mm
Fno	2.2
MAX FOV D/H/V	135℃/110℃/80℃
Equivalent focal length	26.4mm
FBL and BFL	4.28mm, 4.38mm
TTL	21.5mm
TV Distortion	< -15%
Optical Structure	4G+IR CUT
Wavelength	400nm-650nm
Thread Size	M12x0.5
Barrel Material	Aluminium Alloy

Fixed Lens w/o IR Filter(Optional）
Focal Length (EFL)	3.6mm
Fno	2.0
Equivalent focal length	28.8mm
MAX FOV D/H/V	132℃/102℃/76℃
Equivalent focal length	28.8mm
FBL and BFL	7.67mm, 5mm
TTL	21.5mm
TV Distortion	< -35%
Optical Structure	5x6G
Thread Size	M12x0.5
Barrel Material	Aluminium Alloy

OS Support	Android 8.1 + TensorFlow Lite, Camera app FriendlyCore 18.04 （64-bit） + Gstreamer 1.0 FriendlyDesktop 18.04 （64-bit） + Gstreamer 1.0 Lubuntu 16.04 （32-bit） + Gstreamer 1.0
Kernel version	Linux-4.4-LTS U-boot-2014.10

Board Support

NanoPC-T4 NanoPi M4 NanoPi NEO4

Weight	10.3g
Dimension	38*38mm
