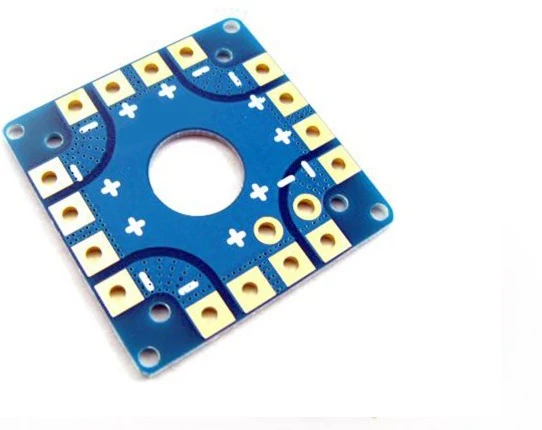

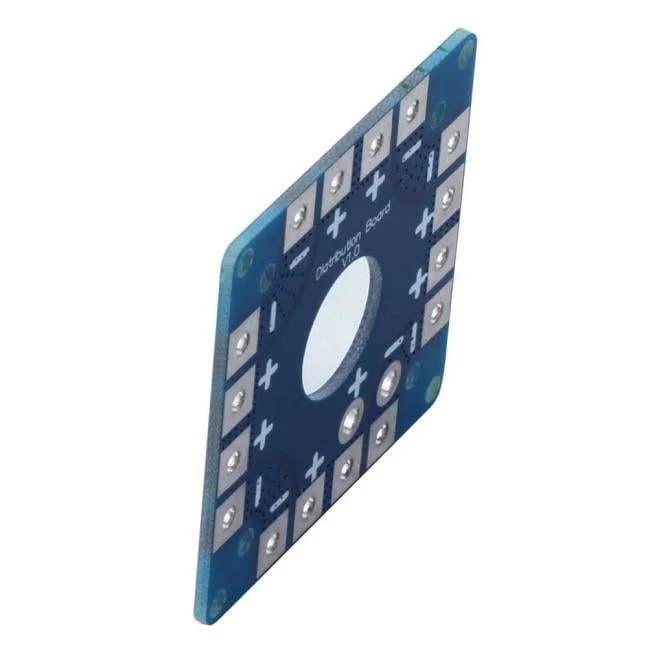

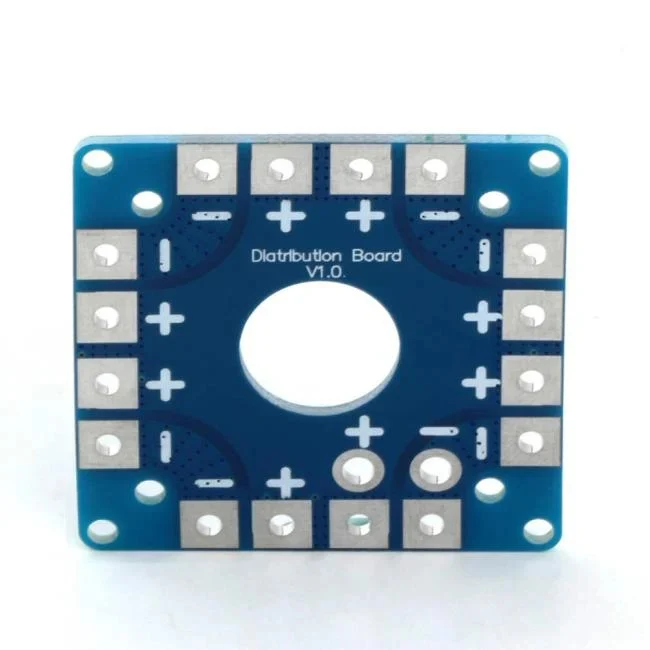

100A Multirotor ESC Power Distribution Battery Board For Quadcopter

The 100A Multirotor ESC Power Distribution Battery Board For Quadcopter is a lightweight distribution board which will power your multi-rotor aircraft easily.

Simply solder a battery connection onto the two central terminals, and you’ve got eight pairs of connections to use – perfect for quadcopters, hexacopters, and even octocopters.

These boards are great for smaller multirotor builds. They’re compact and lightweight and offer large solder pads – making them easy to work with. These boards can handle some serious current – up to 20A per output for a quadcopter build or drop that down to 10A each for an octocopter.

We have same board with pre-soldered 3.5mm bullet connectors available, do not forget to check it out

ESC Power Distribution Board Soldered XT60 Plug & 3.5mm Banana Bullet Connector

---

Features :

1. Compatible with MK KK flight control installment pitch of holes
2. Compatible with MK KK flight control system
3. Can connect 1-8 ESC.
4. Hole Spacing: 45mm Square and 35mm Square (Compatible with KK 45mm spacing)
