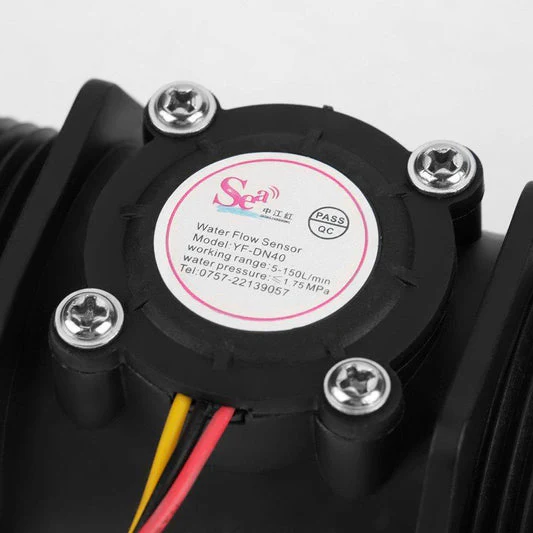

1.5 Inch Water Flow Sensor YF - DN40

YF-DN40 1.5 inch is a plastic body water flow sensor that contains a water rotor and a hall-effect sensor and is used for flow measurement for industrial application . When the water flows through the rotor, rotor rolls and the speed of it changes with a different rate of flow. The hall-effect sensor outputs the corresponding pulse signal.

The output of the flow sensor is proportional to the water flow. The more the water flowing more are the pulses.

Features of 1.5 inch Water Flow Sensor - YF-DN40:-



• Hydrostatic pressure> 1.75MPa meet
• Operating voltage range DC 5 ~ 24V comply
• Insulation resistance> 100M> 100M
• Accuracy in 1 ~ 120L / MIN  ± 2% in line
• Flow pulse characteristics F = (0.45 * Q) Q = L / Min meet
• Low temperature test at -20'C temperature placed after 72h, at room temperature for 1h, the first measurement accuracy within ± 5% value in line
• High-temperature test temperature at 85'C placed after 72h, at room temperature for 1h, the first measurement accuracy within ± 5% value
• 11/2" DN40 flow rate 5~150L/min  Plastic Hall Turbine flow sensor meter  switch valve control liquid flow sensor



Specifications 1.5 inch Water Flow Sensor - YF-DN40:-



• Product item no. :YF-DN40
• Material : Plastic
• Function : Sensor , flow rate control
• Thread size :  BSP 1 1/2”
• Size:L 92x OD46  X1.5"
• Color : Black  color
