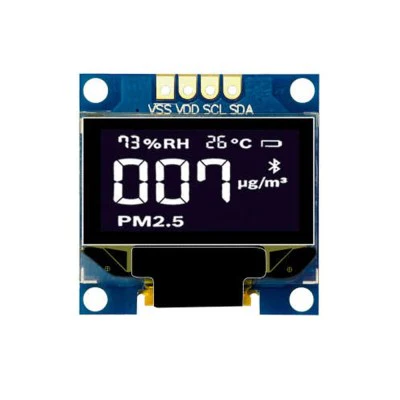

0.96 Inch I2C/IIC 4pin OLED Display Module BLUE
0.96 Inch I2C/IIC 4pin OLED Display Module BLUE
his is a OLED display with I2C support, and features 0.96 inch display. This White Color OLED Display Module has I2C support, which can be interfaced with any microcontroller using I2C/IIC protocol. It is having a resolution of 128×64. The package includes display board, display, 4 pin male header pre-soldered to board.
OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.
This OLED module features ultra low power consumption of 0.08W when the whole screen light is up and 0.06W while displaying characters. And, its fully compatible with various controlling chips including Arduino.
Specifications
- OLED Driver IC: SSD1306
- Resolution: 128 x 64
- Visual Angle: >160°
- Display Color: Area Color (White)
- Input Voltage: 3.3V ~ 6V
- Compatible I/O Level: 3.3V, 5V
- Only Need 2 I/O Port to Control
- Full Compatible with Arduino
- Working temperature: -30°C ~ 70°C
- Interface: I2C
